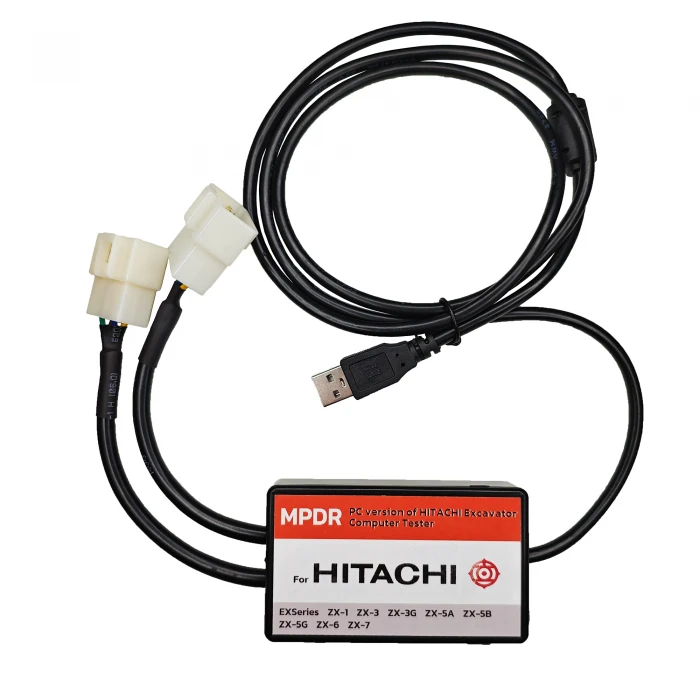

Function and Purpose
- Data Transmission: Bridges the machine’s proprietary diagnostic port to a laptop or scanner.
- System Access: Allows technicians to read and clear fault codes, monitor live hydraulic and engine data, and adjust operational parameters.
Compatibility and Design
- Pin Configurations: Commonly features multi-pin layouts (e.g., 3-pin, 4-pin, or 6-pin connector ends) tailored to specific EX and ZX series excavator generations.
- Software Integration: Bundled alongside diagnostic packages like the Hitachi Diagnostic Tool or MPDr to support troubleshooting across engine, electrical, and hydraulic sub-systems.
